QuantaDose™ Dual wavelength photochromic intensity indicators are a basic, reliable, low cost, simple, in-house method of monitoring UV intensity along with verifying UVC radiation.

  • Verify the wavelength of light being emitted
  • Validate the amount of light being emitted
  • Confirm the amount of light reaching a surface
  • Detect between 320-400nm UVA/UVB on one scale, and 254-280nm UVC on another from the same reusable UV test card
  • World’s first 2 in 1 UV/UVC Photochromic Colorimetric Analysis Card

With an increasing number of fake and defective germicidal UVC products on the market QuantaDose™ provides you with real-time results for super fast verification/validation purposes.

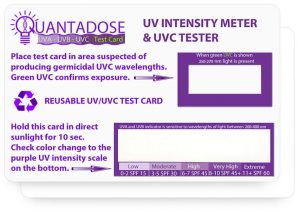

This easy-to-use, credit card sized 85.60 mm by 53.98 mm (3 3⁄8 in × 2 1⁄8 in) UV/UVC test card is an economical way to visualize when the UV disinfection process has truly delivered a powerful level of UVC energy to the target for sanitization.

QuantaDose™ is the first 2 in 1 UV and UVC Colorimetric Analysis Card that is completely reusable for UVC germicidal and the suns UVA/UVB rays.

Increase the efficiency of UVC light disinfection and UV safety

When exposed to UVA and UVB wavelengths, the QuantaDose™ test card undergoes a gradual color change from light purple to dark purple that is directly related to the energy value received.

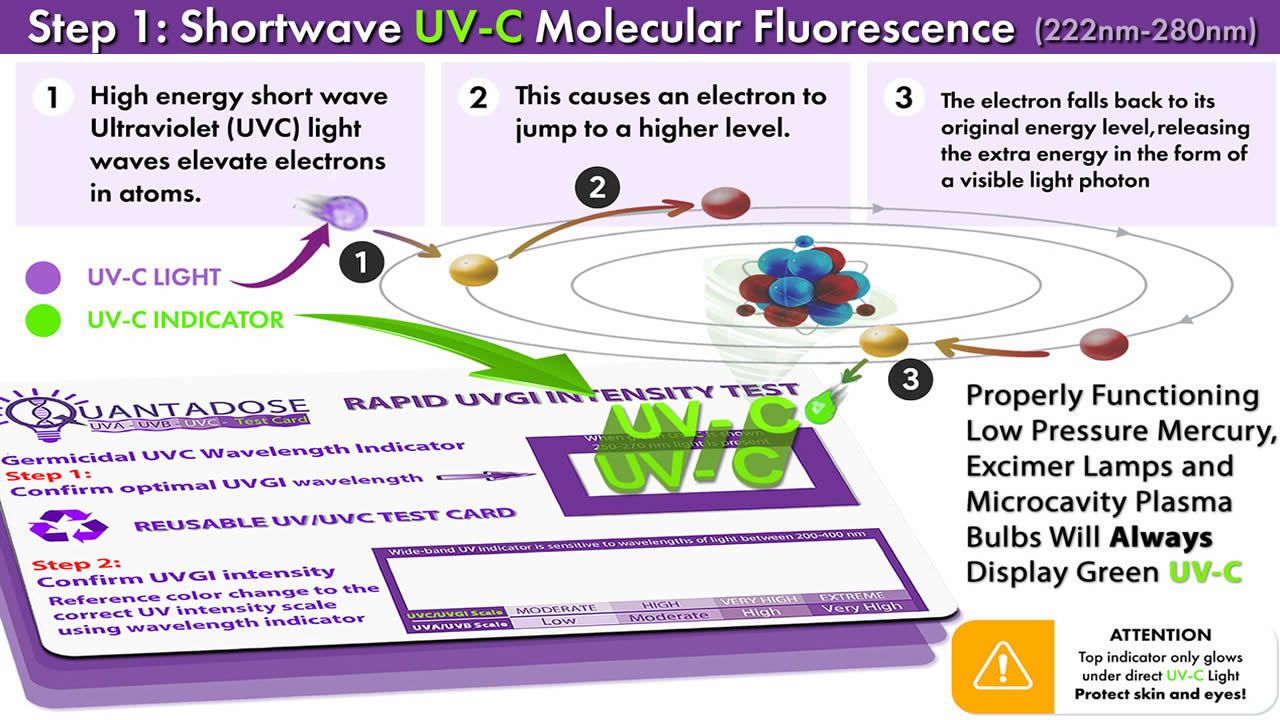

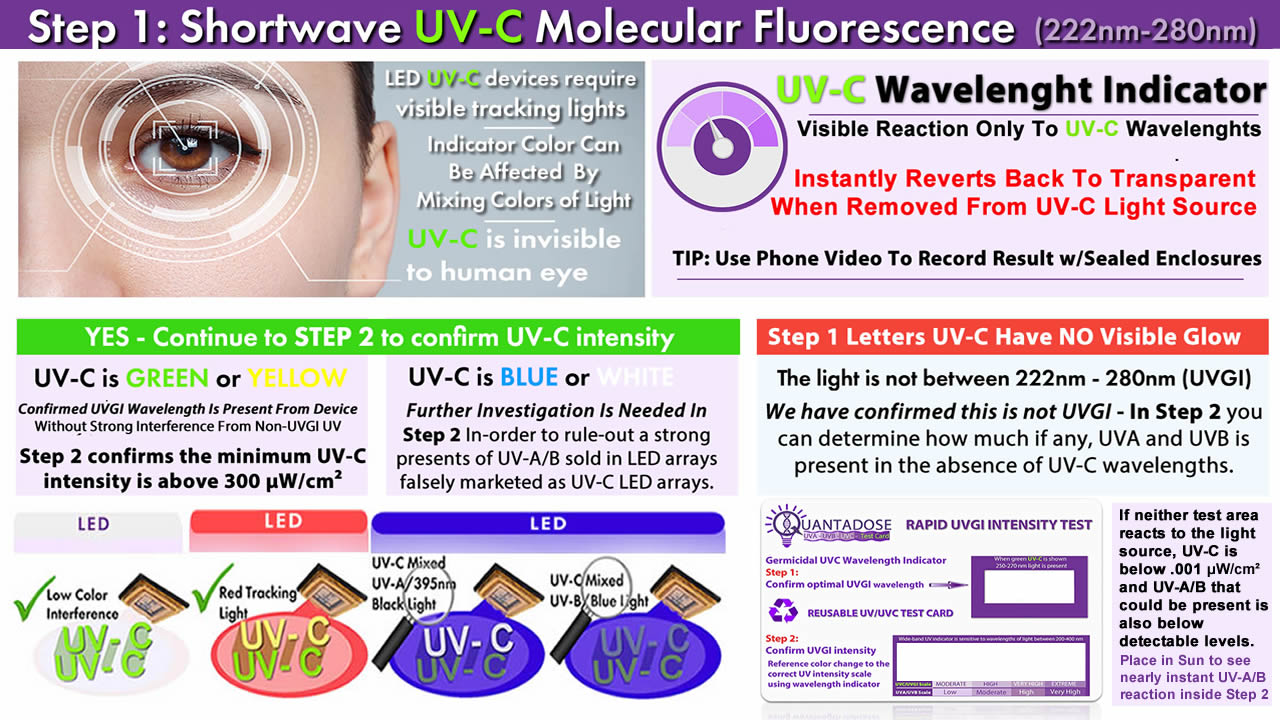

When exposed to UVC germicidal wavelengths, the QuantaDose™ test card undergoes a rapid color change to green where fluorescence is directly related to the energy value received.

Multiple Usage Scenarios


QuantaDose™ the most versatile UV/UVC test card on the market today. Test that your germicidal UVC lighting performs as advertised.

Simultaneous UV Detection


QuantaDose™ is the only UV intensity card meter that distinguishes between the sun’s natural UVA/UVB radiation and man-made sources of germicidal UVC wavelengths simultaneously.

UVA/UVB Detection


UVA comprises of almost 95% of the light that reaches our skin, UVB makes up the rest. The FDA and World Health Organization have all declared UV radiation a known carcinogen. Natural and artificial sources.

UV-C Detection


Specially formulated ink chemistry that is sensitive to only UVC will not fluores to visible light or UVA and UVB. This ensures only germicidal wavelengths between 220-280nm are being shown in green.

Disinfect Visually

QuantaDose™ eyes-on innovation

The amount of pathogenic inactivation is directly proportional to the UVC dose and this in turn is the result of UVC intensity and duration of UVC exposure. The farther away the light source, the less UVC will reach the target, so UVC intensity is reduced to a quarter when the distance doubles. Get the strength by quantifying UV power with QuantaDose™!


uvc-light-dna-rna-damageThe high energy from short wavelength UVC light is absorbed in the cellular RNA and DNA, damaging nucleic acids and preventing microorganisms from infecting and reproducing. This absorption of UVC energy forms new bonds between nucleotides, creating double bonds or “dimers.” Dimerization of molecules, particularly thymine, is the most common type of damage incurred by UVC light in microorganisms. Formation of thymine dimers in the DNA of bacteria and viruses prevents replication and ability to infect.

What is a UVC testing card?

QuantaDose™ UV/UVC Photochromic Test Card

Also referred to as UVC Test Strips, UV-C Test Card, UVC Indicator Card, UVC Light Test Strips, UVC Detector, UVC Test Kit, UVC Visualizer Strips, UVC Indicator Strip, UV Germicidal Test Strips, UVC Reactive Strips, UVC Dosimeter Strips, UVC Dosimeter Cards, UVC Intensity Labels, UVC Visualizer Strips and most accurately called a Photochromic UVC Measurement Test Cards.

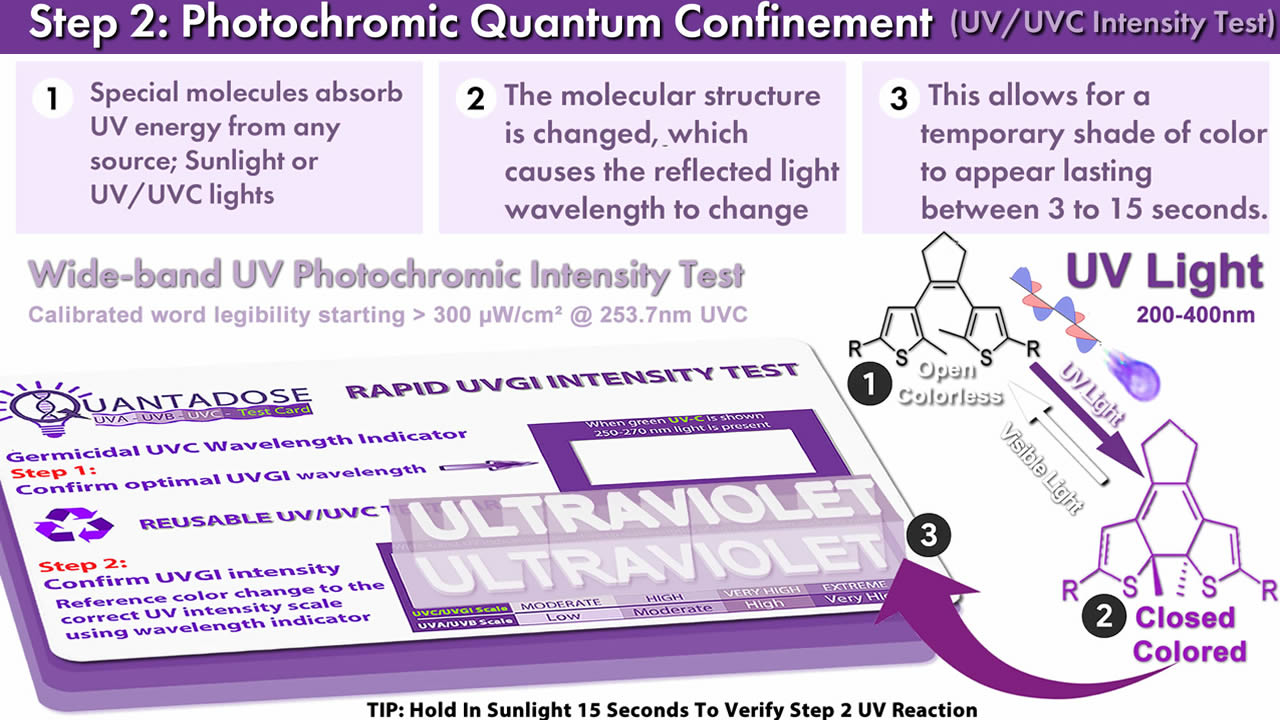

The UV/UVC test card is based on the principle of molecular change. When the energy of a photochromic molecule absorbs energy from ultraviolet light, the structure of the molecule changes, resulting in a change in the reflected light wavelength, which ultimately changes the color of the substance. What makes QuantaDose™ photochromic UVC measurement cards so consumer friendly is when the energy of ultraviolet light is released, the molecule returns to its original structure and the color returns to its original color allowing it to be used over and over again.

Using UVC light technology will not leave residue after treatment, and having a broad spectrum of action and rapid exposure times. The germicidal effects of UVC irradiation results in cellular damage by photohydration, photosplitting, photodimerization, and photocrosslinking, thereby inhibiting cellular replication. Today’s easy to use compact UVC technology allows us to fight the virus outside our bodies!

Start Your Friends & Family On The UV-C Non-Pharmaceutical Pandemic Prevention Plan!

1st Edition Test Card


2nd Edition Test Card

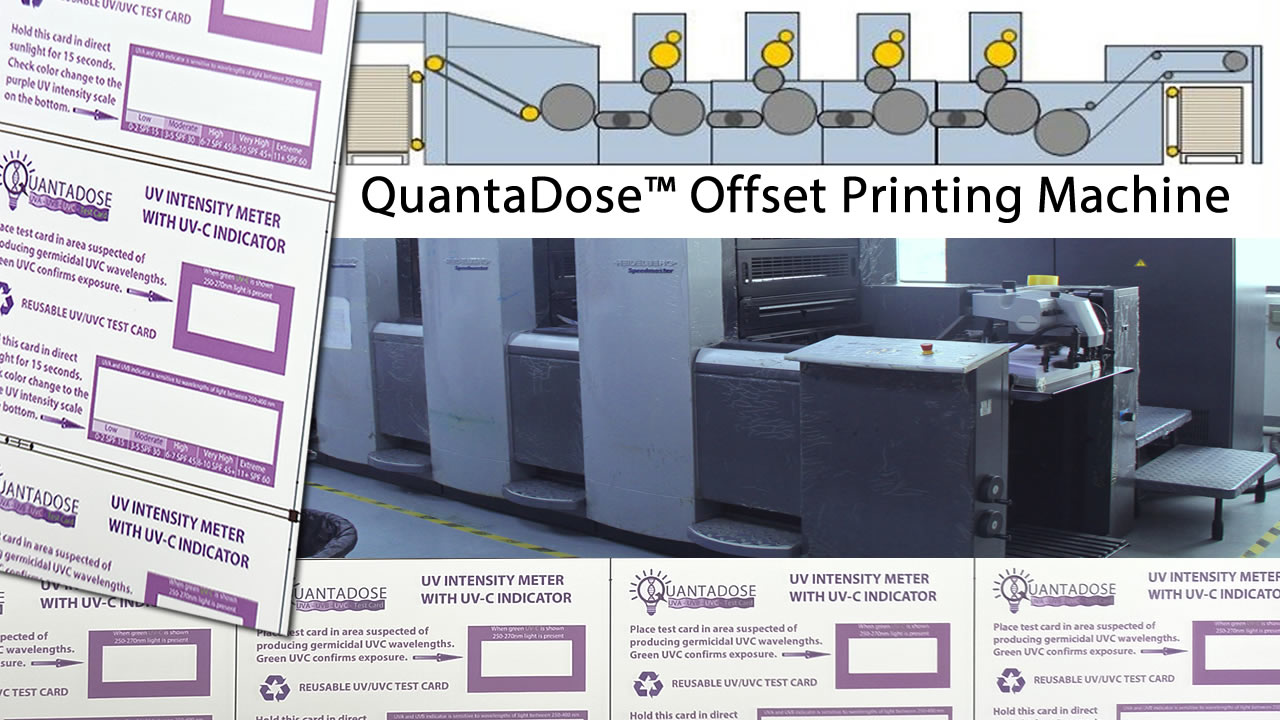

Production Of UV-C Germicidal Test Cards
